OEM and ODM Orders are Welcome. We also set up an after-sales department for supporting customers' needs. OEM and ODM orders are welcome. Trust us,we will make your market grow bigger.
3 Years
| Ask Lasest Price | |
| Brand Name : | PCWINMAX |
| Model Number : | HM55 |
| Certification : | CE FCC |
| Price : | 19.99~40$ |
| Payment Terms : | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability : | 100 piece 5days |
| Delivery Time : | 3~7 work days |

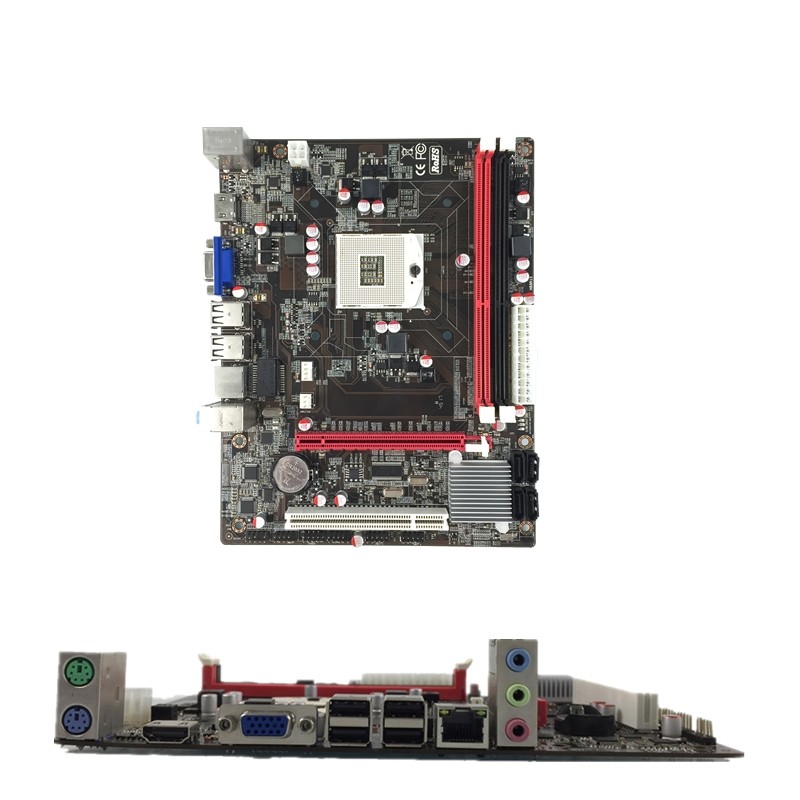

PCWINMAX New HM55 PGA 988 Intel PC Motherboard Support First Gen I3 I5 I7 HM55 Dual Memory Channel DDR3 OEM Mainboard
Description:
The HM55 motherboard is a compact and efficient Micro ATX solution designed for budget-friendly desktop PC builds. Featuring the Intel HM55 chipset and socket PGA988, it supports a range of Intel mobile processors such as the Core i3, i5, and i7 series (1st generation). This board is ideal for light office use, education setups, or basic home systems.
Features:
- Form Factor: Micro ATX
- CPU Socket: PGA988
- Chipset: Intel HM55
- Memory Support: Dual-channel DDR3, up to 8GB
- Integrated Graphics: Supports output via VGA/HD
- Storage Interface: SATA 3Gb/s
- Expansion Slots: 1 x PCIe x16, 1 x PCIe x1
- I/O Ports: USB 2.0, LAN, audio ports, and legacy PS/2 support
Introduction:
| Processor (CPU) |
CollocateCPU, Support for Inte® Core™ i7 processors/Inte® Core™ i5 processors/ Inte® Core™ i3 processors/Inte® Pentium® processors/Inte® Celeron® processors in the LGA 998 and support for all PGA988 pin series product. L3 cache varies with CPU. |
| Chipset |
| Inte1® H55 Express Chipset |
| Memory |
2 x 1.5V DDR3 DIMM Sockets Supporting up to 8GB of System Memory, Support for DDR3 1600/1333/1066 MHz Memory Modules. |
| Slots |
- 1 * PCI Express x16 Slot - 1 * PCI Slot |
| Storage |
| - 4 * Serial ATA 2.0 devices |
| Internal I/O Connectors |
- 1 * 24-pin ATX Power Connector - 1 * 4-pin ATX 12V Power Connector - 2 * USB Connector Support Additional 4 USB Ports - 1 * LPC_DEBUG Connector - 1 * Front Panel Audio Connector - 1 * System Panel Connector |
| Back Panel I/O Ports |
- 1 * PS/2 Mouse & Keyboard - 1 * VGA - 1 * HD - 4 * USB 2.0 - 1 * LAN Port (RJ45) - 3 * Audio Jacks |
| LAN |
| Realtek® GbE LAN Chip (10/100/1000 Mbit) |
| Audio |
| Chip Integrated by Realtek ALC661, Supports 5.1-channel Audio-out |
| Form Factor |
| - Micro ATX (235*168 mm) |
| Accessories |
- User Manual - Drive CD |
Hot product
Our advantages:
1. Original new card.
2. Support OEM&ODM,customization service.
3. We are the manufacturer, and the price will be the most
favorable.
4. We deliver quickly, and deliver within 3~7 working days after
placing an order.
5. Clients from 200＋ nations.
6. Focus on this market 20 yeas, Our experience and profession will
guarantee the purchase well
Related product introduction:
Intel H410/Intel h310/Intel h110/Intel B250/intel H81/Intel
B85/Intel h61/Intel b75/intel h55/intel G41/intel G31/INTEL
X99/INTEL X79/INTEL X58/AMD A780/AMD A880
Mining graphic card/ram/motherboard/ssd/hdd/cpu
RTX graphic card and so on
FAQ:
1. Product have warranty?
A: Yes, we provide after service. Please contact our professional
after-sales service.
2. How can we guarantee quality?
A: Always a pre-production sample before mass production; Always
final Inspection before shipment.
3. What can you buy from us?
A: Graphics cards,motherboard,RAM,Solid State Drive,HDD,CPU.etc.
Q: What service do you have?
A: Provide samples.
We also provide daily price list service. Please consult the salesperson.
|
|
